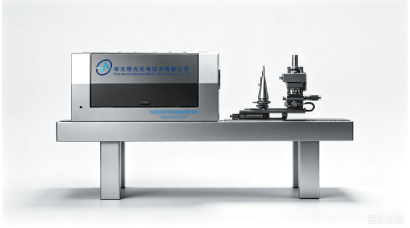

TeraCheck-F300 系列
| Mod.参数 Param \ 型号 |
VIS |
SWIR |
MWIR |
LWIR |
|
入瞳直径下限 EPD LSL |
10mm |
25mm | ||
|
入瞳直径上限 EPD USL |
250mm | |||
|
镜头焦距 FL |
25mm~250mm |
|||
|
视场角范围 FOV |
≥±110° |
|||
|
空间频率上限 SF_max |
≥500lp/mm |
≥300lp/mm |
≥200lp/mm |
≥100lp/mm |
|
光路结构 OPS |
离轴反射 Off-axis reflection | |||
|
光谱范围 SR |
0.4~0.75um |
1.0~1.7um 1.0~2.5um* |
3~5um |
8~12um |
|
zui大像高 Max IH
|
可定制 |
|||
|
MTF 精度 MTF Accuracy |
±0.03MTF |
|||
|
MTF 重复性 MTF Repeatability |
±0.02MTF |
|||
|
EFL 精度 EFL Accuracy |
±0.4% |
|||
|
畸变精度 Distortion Accuracy |
±0.4% |
|||
| 面阵像分析器 FPA |
1920×1200 非制冷 Uncooled |
640×512 制冷 Cooled |
640×512 制冷 Cooled |
640×512 非制冷/制冷* Uncooled/ Cooled* |
|
平行光管焦距 Collimator FL |
zui大 3000mm Max 3000mm |
|||
|
镜头支架 BKT |
圆盘安装或三爪定位安装，俯仰和偏摆角度手动调整 Disc mounting/three-jaw positioning mount Manual adjustment of pitch and yaw angles |
|||
|
电源要求 PWR REQ |
220VAC，50Hz |
|||
|
环境要求 ENVR |
室内，15~25℃,相对湿度 80%以下 Indoor,15~25℃,relative humidity below 80% |
|||
带*选项为可选
项Options marked with * are optional.
